Description

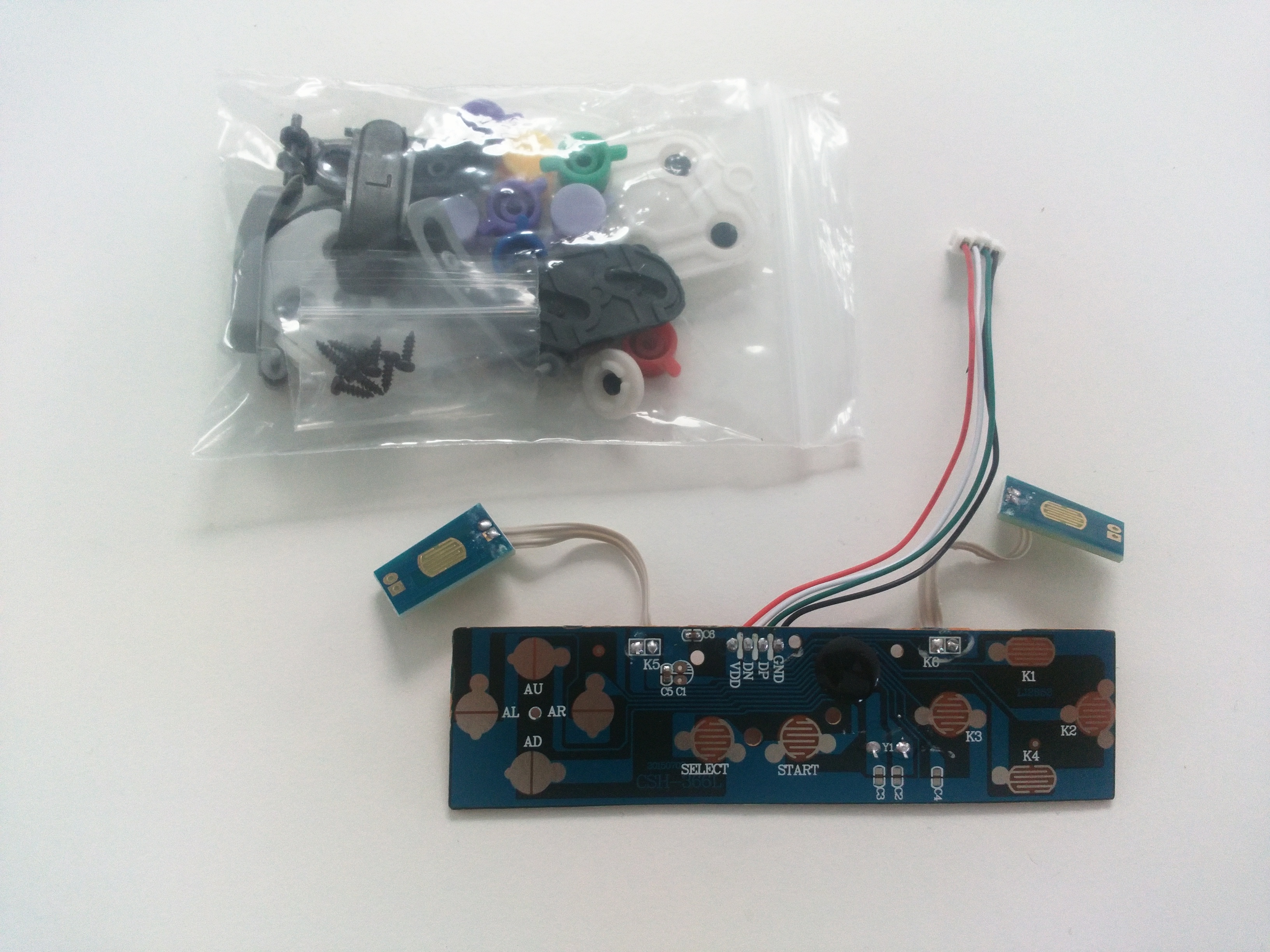

This is the gamepad module kit that fit in the Raspiboy handheld casing. It contains the plastic buttons, silicon pads and gamepad PCB with 10cm wire to connect to the 8BCraft PCB.
It contains BOTH black and grey color L and R buttons.
It also contains BOTH color set red-blue-green-yellow and purple plastic buttons

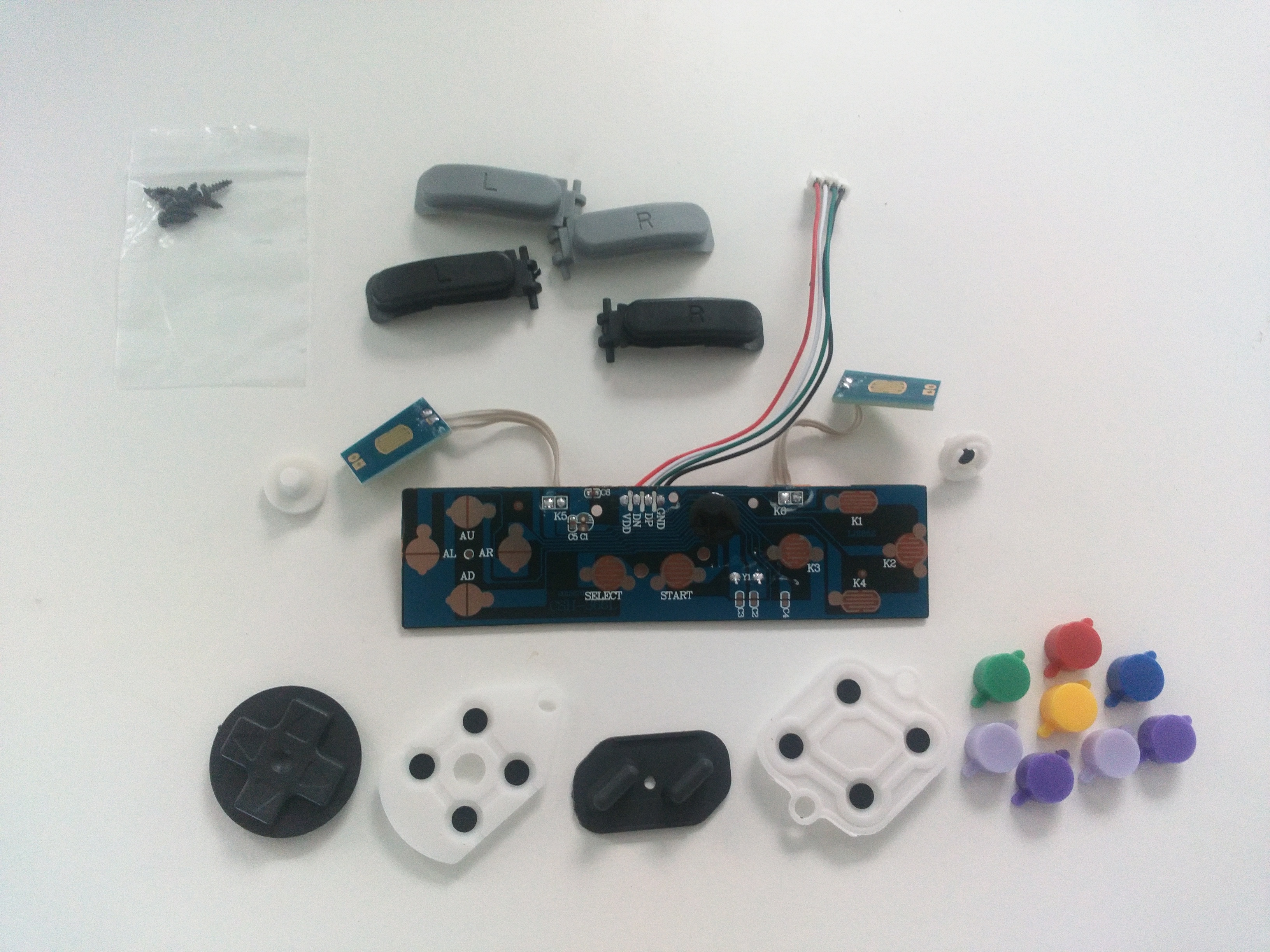

Full component list :
– main gamepad PCB
– L and R PCB
– color buttons A B X Y red-blue-green-yellow set
– color buttons A B X Y purple set
– A B X Y buttons silicone
– direction button + silicone
– start and select button
– black R/L button
– grey R/L button
– L/R silicones
– 7 screws
Sandro Garofalo –
The R and L buttons have been badly designed and after several uses they tend to crack at the point of the hinge, or to be solved by rebuilding them with kintsuglue.
It should also be reviewed the rubberized part that during the assembly goes out of place continuously.
As for the DPAD supplied with the first kit, which is really very hard and noisy, you could replace the rubber part with a softer or less thick one.
For the buttons, however, I found no problem.
Admin –
It’s not the first time I hear this comment about the dpad. So I will investigate to find better parts for dpad buttons and silicons
